MCB installation in Hyderabad for homes & offices. Safe, expert electrical setup by trained technicians. Call 7780517507 – Global Technology.

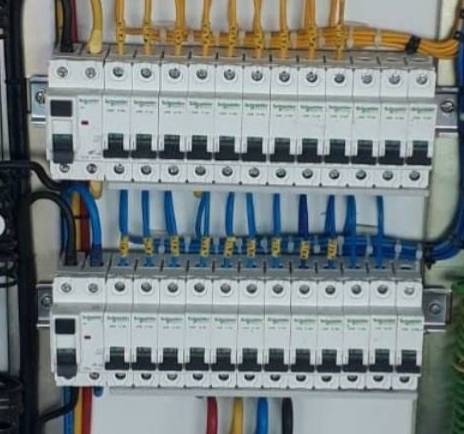

| Other specifications | **MCB (Miniature Circuit Breaker) Installation** is crucial for providing safety by automatically disconnecting electrical circuits in case of overload or short circuits. The MCB is used to protect electrical appliances, wiring, and systems from damage due to excessive current. ### ✅ **Types of MCBs (Miniature Circuit Breakers)** 1. **Single-Pole MCB** (1P MCB): - **Uses**: Typically used in **single-phase** circuits to protect one conductor (live wire). - **Configuration**: It has one pole for the live (L) wire and is most commonly used for protecting **light circuits** or **small appliances**. - **Rating**: Usually comes with current ratings from **6A to 63A**. 2. **Double-Pole MCB** (2P MCB): - **Uses**: Designed for **single-phase** circuits where both the **live** and **neutral** wires need to be disconnected simultaneously to avoid a potential shock hazard. - **Configuration**: It consists of two poles: one for the live wire and one for the neutral wire. - **Rating**: Commonly used in **heating appliances**, **AC units**, and **higher-power circuits**. 3. **Triple-Pole MCB** (3P MCB): - **Uses**: Used for **three-phase circuits** to protect all three phases from overload or short circuit. - **Configuration**: It has three poles, each connected to a live wire from the three-phase system. - **Rating**: Generally found in **industrial** applications with higher current ratings. 4. **Four-Pole MCB** (4P MCB): - **Uses**: Protects **three-phase** circuits that include a neutral line, making it ideal for balanced systems where the neutral wire also needs to be protected. - **Configuration**: It consists of four poles—three for the live wires and one for the neutral. - **Rating**: Typically used in **commercial and industrial setups** where balanced three-phase loads and neutral conductors are involved. --- ### ✅ **MCB Installation Specifications** #### 1. **Rating and Type Selection** - **Current Rating**: Ensure that the MCB chosen is rated appropriately for the circuit it is protecting. The rating of the MCB should match or exceed the maximum current expected in the circuit to prevent unnecessary tripping but still protect against overloads. - For **single-phase circuits**, use MCBs with a rating between **6A to 63A**. - For **three-phase circuits**, the rating will depend on the equipment load and may range from **10A to 100A** or more. - **Type of MCB**: MCBs come in different **types (B, C, D)**, which describe the current trip characteristics: - **Type B**: Trips between **3-5 times** the rated current (ideal for domestic applications). - **Type C**: Trips between **5-10 times** the rated current (for general-purpose use in offices or small factories). - **Type D**: Trips between **10-20 times** the rated current (used in circuits with high inrush currents, like motors). #### 2. **Installation Location** - **Distribution Boards**: MCBs should be installed in an **electric distribution board** (DB), which provides centralized control for the electrical circuits in the building or premises. - **Accessibility**: MCBs should be mounted at a **height** where they are easily accessible for maintenance or switching in case of emergency. - **Proper Mounting**: Install the MCB securely within the distribution board, ensuring it is firmly attached to the **DIN rail** or equivalent mounting mechanism. - **Spacing**: Maintain the recommended spacing between MCBs to avoid overheating. MCBs should not be installed too close to each other to allow for proper ventilation. #### 3. **Wiring Connections** - **Proper Termination**: Make sure the wires are properly terminated in the **input and output terminals** of the MCB. - For **single-pole MCBs**, connect the **live wire** to the terminal. - For **double-pole MCBs**, connect the **live and neutral wires**. - For **three-pole MCBs**, connect all three **phase wires**. - For **four-pole MCBs**, connect **three-phase wires** and the **neutral wire**. - **Correct Gauge Wires**: Ensure the wire size matches the current rating of the MCB and is capable of handling the full load of the circuit. #### 4. **Overcurrent and Short-Circuit Protection** - **Overload Protection**: MCBs provide protection against **overload** by tripping when the current exceeds the preset limit. - **Short-Circuit Protection**: In case of a short circuit, the MCB will trip instantly to protect the circuit from damage caused by excessive current flow. #### 5. **MCB Rating Compatibility** - **Max Circuit Load**: Ensure that the MCB chosen can handle the **maximum expected load** of the circuit. The MCB should be rated higher than the maximum current that can flow through the circuit under normal operating conditions but lower than the potential fault current. - **Coordination**: If multiple MCBs are used in a system, ensure they are coordinated to **selectively trip** the faulted circuit without affecting other circuits unnecessarily. #### 6. **Testing** - **Test Button**: Some MCBs come with a **test button** to simulate an overload and ensure the MCB trips correctly. Regular testing is recommended to verify functionality. - **Visual Indicators**: MCBs have a **manual reset lever** or **indicator lights** that show whether the breaker is in the **on** or **off** position. #### 7. **Compliance with Regulations** - **Local Electrical Standards**: Ensure that the MCB installation complies with **local electrical codes** and **safety regulations**. These codes specify requirements for wire size, breaker ratings, and installation practices to ensure safety. - **Certifications**: The MCB should be certified by relevant standards organizations, such as **CE**, **UL**, or **IS** standards, to guarantee its performance and safety. #### 8. **Maintenance** - **Periodic Inspection**: MCBs should be inspected periodically to check for any signs of wear, loose connections, or damage. - **Resetting the MCB**: After an overload or short circuit, the MCB should be **reset manually** to restore normal operation. Do not continue to reset the MCB repeatedly without addressing the underlying issue. --- ### ✅ **Steps for MCB Installation** 1. **Turn Off the Main Power Supply**: Before installation, ensure that the **main power supply** is turned off to prevent any electrical hazards. 2. **Choose the Appropriate MCB Type**: Based on your circuit's requirements, select the correct **single-pole, double-pole, three-pole, or four-pole MCB**. 3. **Mount the MCB**: Install the MCB securely on the **DIN rail** or mounting bracket within the distribution board. Ensure the **polarity** is correct. 4. **Connect the Wires**: Attach the wires to the MCB terminals as follows: - **Single-Pole MCB**: Connect the live wire to the input terminal and the outgoing live wire to the output terminal. - **Double-Pole MCB**: Connect both the live and neutral wires to the input terminals. - **Three-Pole/ Four-Pole MCB**: Connect the respective phase and neutral wires to the appropriate terminals. 5. **Tighten Connections**: Ensure that all wire connections are tightened securely to avoid any loose connections, which can cause overheating. 6. **Test the Installation**: Turn on the power supply and test the MCB by checking the visual indicators or using the test button if available. Verify that the MCB is operating properly by simulating a fault condition (e.g., overload). 7. **Labeling**: Once the installation is complete, label the MCB to clearly indicate which circuit or area it controls. This is important for future maintenance or troubleshooting. --- ### ✅ **Questions to Ask Your Service Provider** 1. **MCB Rating**: What rating of MCB should I install based on my circuit’s load and application? 2. **MCB Type**: Do I need a **single-pole**, **double-pole**, or **three-phase MCB** for my installation? 3. **Installation Compliance**: Will the installation comply with **local electrical safety regulations** and standards? 4. **Testing**: Can you perform a test to ensure the MCB trips correctly during an overload or short circuit? 5. **Future Expansion**: Can I easily add more MCBs to the existing distribution board for future circuit expansion? --- Would you like assistance finding a service provider for MCB installation, or need more details on selecting the right MCB for your setup? |
