Book 11 kW EV Charger Installation in Hyderabad | Professional EV Charger Installation | GlobalTechnology Services starting at INR in Hyderabad

EV CHARGER by All Types

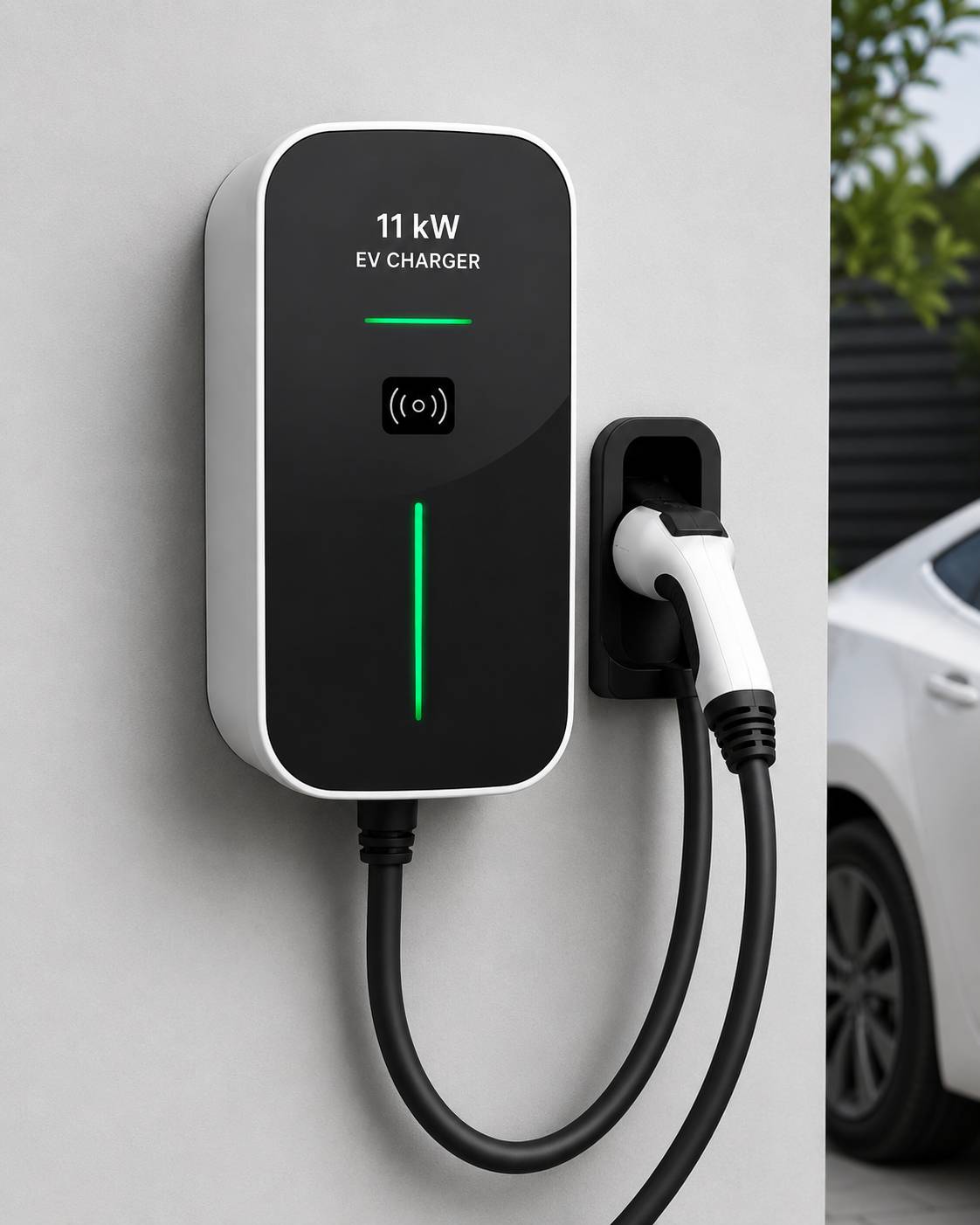

11 kW EV Charger Installation in Hyderabad | Professional EV Charger Installation | GlobalTechnology - GLOBALTECHNOLOGY – 11 kW EV CHARGER INSTALLATION Key Specifications, Features & Professional Installation Details GLOBALTECHNOLOGY provides professional 11 kW EV charger installation services for homes, villas, apartments, offices, commercial buildings, hotels, showrooms, and industrial facilities across Hyderabad and Telangana. We deliver safe, efficient, and reliable EV charging solutions with complete electrical safety standards and professional installation support. An 11 kW EV charger is one of the most preferred charging solutions for modern electric vehicles because it offers faster charging performance, stable power supply, energy efficiency, and long-term reliability. GLOBALTECHNOLOGY provides complete installation support including site inspection, wiring setup, MCB installation, RCCB protection, earthing verification, safety testing, charger mounting, commissioning, and maintenance support. Our experienced technicians ensure every installation follows professional electrical standards and delivers safe charging performance for residential and commercial users. Why Choose GLOBALTECHNOLOGY? GLOBALTECHNOLOGY delivers high-quality EV charging solutions with professional workmanship and customer-focused support. Our Advantages Professional EV charger installation Same-day service support Safe electrical wiring setup High-quality materials Expert technicians Complete testing and commissioning Residential and commercial installation One month service warranty Hyderabad & Telangana service coverage Affordable installation pricing Technical support and maintenance Reliable charging performance What is an 11 kW EV Charger? An 11 kW EV charger is an AC charging system designed for efficient and faster electric vehicle charging. It usually operates on a three-phase electrical connection and provides significantly faster charging compared to standard charging points. These chargers are suitable for: Homes Villas Apartments Office buildings Hotels Shopping malls Parking facilities Commercial spaces Main Functions Fast EV charging Stable electrical performance Battery protection Smart energy management Safe charging operation Efficient power usage Reliable charging support Key Specifications of 11 kW EV Charger Power Specifications Charging Capacity: 11 kW Charging Type: AC Charging Electrical Supply: Three Phase Voltage Range: 400V AC Frequency: 50 Hz Current Rating: Up to 16A per phase Charging Connector Type 2 charging connector Secure locking mechanism Weather-resistant design Durable insulation support Heavy-duty charging cable Installation Types Wall-mounted installation Stand-mounted installation Indoor installation Outdoor installation Residential charging setup Commercial charging setup Safety Protection Features Overcurrent protection Overvoltage protection Short circuit protection Earth leakage protection Surge protection Thermal protection Earth fault protection Build Quality Industrial-grade construction Fire-resistant materials UV-resistant outer body Corrosion-resistant finish Weatherproof design Electrical Requirements Proper electrical setup is essential for safe EV charger operation. Required Setup Three-phase electrical connection Dedicated charging circuit Stable voltage supply Proper earthing system Suitable load capacity Branded protection devices MCB Installation GLOBALTECHNOLOGY installs suitable MCB protection for overload safety. Benefits Prevents overload Improves electrical safety Protects charger system Reduces electrical risk RCCB Protection Residual current protection devices help prevent electrical leakage hazards. Advantages Shock protection Leakage current detection Improved user safety Reliable protection system Earthing Requirements Professional earthing is mandatory for EV charger safety. Earthing Features Copper earthing support Stable grounding system Low resistance protection Safe current discharge Enhanced electrical safety Professional Installation Process GLOBALTECHNOLOGY follows a step-by-step professional installation process. Step 1 – Site Inspection Our technicians inspect: Existing wiring condition Main electrical panel Earthing condition Parking accessibility Charger placement location Electrical load capacity Safety requirements Step 2 – Load Calculation Load analysis helps determine electrical compatibility. Includes Existing power usage Distribution board capacity Future electrical requirements Safe load balancing Step 3 – Material Preparation We use high-quality installation materials. Materials Used Copper wiring PVC conduit MCB and RCCB Mounting brackets Cable accessories Industrial fasteners Step 4 – Wiring Installation Safe and professional cable routing is performed. Wiring Features Heavy-duty copper cables Heat-resistant insulation Neat cable management Secure electrical connections Safe conduit routing Step 5 – Charger Mounting The charger is securely mounted for safe operation. Mounting Benefits Strong support structure We Key specification

30min INR 12500 INR 15000 https://www.globaltechnology2814.com/services/11-kw-ev-charger-installation-in-hyderabad-professional-ev-charger-installation-globaltechnology/154

Description

Looking for a professional 11 kW EV charger installation in Hyderabad? Global Technology offers safe, reliable, and standards-compliant installation services for residential, commercial, office, apartment, and industrial locations across Hyderabad. Our experienced technicians install 11 kW AC EV chargers with proper electrical safety checks, load assessment, earthing verification, MCB/RCCB/RCBO protection, cable routing, and complete testing to ensure efficient and secure charging. We install compatible chargers for leading EV brands, including Tata Motors, MG Motor, Mahindra, BYD, Hyundai, Kia, BMW, Mercedes-Benz, Audi, Volvo, Jaguar, MINI, Citroën, and other Type 2 AC charging systems. Our service includes site inspection, electrical panel assessment, wiring recommendations, charger mounting, commissioning, and post-installation testing. Whether you need a new installation, charger relocation, wiring upgrade, or troubleshooting for an existing 11 kW charger, Global Technology provides prompt and professional service throughout Hyderabad. Why Choose Global Technology? Professional 11 kW EV Charger Installation Experienced & Verified Technicians Electrical Safety Inspection Proper Earthing & Protection Devices Residential & Commercial Installations Apartment & Villa Charging Solutions Transparent Pricing Complete Installation Testing Service Available Across All Hyderabad Areas Global Technology 📞 Call: 7780517507 🌐 Website: https://www.globaltechnology2814.com 📍 Service Available Across All Hyderabad Areas

Other Specifications

Key Specification 11 kW EV Charger Installation – All Hyderabad Area : Global Technology provides professional 11 kW EV charger installation services across all Hyderabad areas for homes, apartments, villas, offices, commercial buildings, and parking locations. An 11 kW EV charger is one of the best charging solutions for electric vehicles because it offers faster charging speed, reliable performance, and efficient power management compared to standard charging systems. What is an 11 kW EV Charger? An 11 kW EV charger is a Level 2 AC charging system designed for electric vehicles. It uses a three-phase power supply and provides faster charging compared to portable chargers or standard 15A sockets. It is suitable for electric cars such as: Tata Nexon EV MG ZS EV BYD Atto 3 Hyundai Kona EV Mahindra XUV EV BMW EV Series Mercedes EQ Series Kia EV6 Volvo XC40 Recharge Global Technology installs safe and professional 11 kW charging systems throughout Hyderabad. Key Specifications of 11 kW EV Charger 1. Power Output Output Power: 11 kW Charging Type: AC Fast Charging Phase Type: 3 Phase The charger delivers high-speed charging suitable for residential and commercial applications. 2. Input Voltage Voltage Range: 380V – 415V AC Frequency: 50 Hz Stable voltage is important for efficient EV charging performance. 3. Current Rating Approximate Current: 16A per phase The charger requires proper MCB, RCCB, and cable sizing for safety. 4. Connector Type Common connector types: Type 2 Connector CCS Compatible Vehicles IEC Standard Support Most modern EV cars support Type 2 AC charging. 5. Charging Speed Average charging performance: 0% to 80% charge in approximately 4–6 hours Depends on battery size and vehicle model 11 kW charging is significantly faster than portable charging solutions. 6. Protection Features Professional EV charging installations include: MCB Protection RCCB Protection Surge Protection Device (SPD) Earthing Protection Over Voltage Protection Short Circuit Protection Leakage Current Protection Global Technology follows safe electrical installation standards. 7. Cable Specification Recommended cable sizes: 6 sqmm copper cable 10 sqmm copper cable for longer distances Cable selection depends on: Distance Voltage drop Load requirement Installation type 8. Earthing Requirement Proper earthing is mandatory for EV charger safety. Recommended: Copper earthing Chemical earthing Dedicated earth pit Good earthing protects: Vehicle battery Charger electronics Users from electric shock 9. Installation Location 11 kW EV chargers can be installed in: Homes Villas Apartment parking Commercial parking Office buildings Car showrooms Fleet parking areas Global Technology provides installation support across all Hyderabad areas. Benefits of 11 kW EV Charger Faster Charging Charges vehicles much faster than normal sockets. Better Efficiency Provides stable power delivery with reduced charging losses. Safe Charging Professional protection systems improve safety. Smart Charging Many chargers support: Wi-Fi Mobile App Control RFID Access Energy Monitoring Future Ready Suitable for upcoming EV models and larger battery systems. Importance of Professional Installation Professional installation ensures: Proper load balancing Safe cable routing Correct breaker sizing Reliable earthing Stable charging performance Improper installation can cause: Heating Voltage drop Charger faults Fire hazards Electrical damage Global Technology provides expert EV charger installation services with proper safety standards. Recommended Electrical Components For 11 kW EV charger installation: MCB 32A or suitable rating RCCB / RCBO Type A or Type B protection SPD Type 2 Surge Protection Device Isolator Weatherproof isolator switch Earthing Kit Copper bonded earthing system Cable Distance and Voltage Drop Cable distance affects charger performance. For long-distance installation: Use higher cable size Reduce voltage drop Improve efficiency Example: Up to 30 meters: 6 sqmm copper Above 30 meters: 10 sqmm copper recommended Why Choose Global Technology? Global Technology offers: Professional EV charger installation Electrical safety testing Earthing solutions MCB and RCCB installation Cable routing and management Charger setup and configuration Hyderabad-wide service support Our technicians provide clean and reliable installation work. Hyderabad Service Areas Global Technology provides 11 kW EV charger installation in: Banjara Hills Jubilee Hills Gachibowli Madhapur Kondapur Kukatpally Miyapur Ameerpet Secunderabad Begumpet LB Nagar Uppal Hitech City Manikonda Financial District Shamshabad Kompally Dilsukhnagar Tarnaka ECIL All Hyderabad Areas Contact Global Technology For professional 11 kW EV charger installation in Hyderabad: 📞 Call: 7780517507 🌐 Website: www.globaltechnology2814.com Global Technology provides trusted EV charging installation services with safety, quality, and professional support across Hyderabad.
Key Specification – 11 kW Kia EV Charger Installation : An 11 kW Kia EV charger installation is designed for fast, safe, and efficient electric vehicle charging at homes, apartments, offices, villas, and commercial buildings. Proper installation ensures stable charging performance, electrical safety, and long-term reliability. The 11 kW charger is commonly used for Kia EV6 and other electric vehicles that support three-phase AC charging. Global Technology provides professional EV charger installation services with complete wiring, protection systems, testing, and commissioning. Call: 7780517507 Website: www.globaltechnology2814.com What is an 11 kW EV Charger? An 11 kW EV charger is a three-phase AC charging system used for electric vehicles. It provides faster charging compared to standard 3.3 kW or 7.4 kW chargers. The charger converts AC power from the electrical supply and delivers it safely to the EV battery through the onboard charger. An 11 kW charger is suitable for: Kia EV6 Hyundai Ioniq 5 MG ZS EV BYD electric vehicles BMW EV models Mercedes EQ series Audi e-tron Volvo EVs Key Specifications of 11 kW Kia EV Charger Installation 1. Charger Power Rating Power Output: 11 kW Charging Type: AC Charging Phase Requirement: Three Phase Voltage: 415V AC Frequency: 50 Hz The charger supports fast and efficient charging for modern electric vehicles. 2. Charging Connector Type Most Kia EV chargers use: Type 2 Connector (IEC 62196) Compatible with Indian and international EV standards The Type 2 connector supports safe communication between vehicle and charger. 3. Charging Speed Approximate charging speed: 0–100% charging time: 6 to 8 hours Depends on: Battery size Vehicle onboard charger Supply voltage Battery condition An 11 kW charger is significantly faster than portable chargers. 4. Electrical Supply Requirement The installation requires: 3-phase electrical connection Proper earthing system Dedicated power line Independent MCB protection RCCB or RCBO safety protection Global Technology checks the complete electrical load before installation. 5. Recommended Cable Size Cable size depends on installation distance. Common recommendations: Distance Recommended Copper Cable Up to 15 meters 4 sqmm 15–30 meters 6 sqmm 30–50 meters 10 sqmm High-quality copper cable reduces voltage drop and overheating. 6. Protection Devices Safety devices are very important in EV charger installation. Recommended Protection: MCB RCCB Type A RCBO SPD (Surge Protection Device) Proper Earthing These devices protect against: Short circuit Electric shock Overload Voltage fluctuation Lightning surge 7. Earthing Requirement Proper grounding is mandatory. Recommended Earthing: Copper earthing preferred Earth resistance below 5 ohms Separate EV charger earthing recommended Good earthing improves charging safety and equipment protection. 8. Installation Location The charger can be installed: Parking areas Home garages Basement parking Apartment parking Office parking Commercial EV stations Installation should be protected from: Direct rain Water leakage Excessive heat Physical damage 9. Smart Features Modern 11 kW Kia EV chargers may include: Wi-Fi connectivity Mobile app monitoring RFID access Energy monitoring Scheduled charging Load balancing Smart diagnostics Smart charging helps users monitor power consumption and charging status. Benefits of 11 kW Kia EV Charger Installation Faster Charging An 11 kW charger charges significantly faster than standard portable chargers. Better Efficiency Stable power delivery improves battery charging efficiency. Home Convenience Users can charge the vehicle overnight at home. Reduced Charging Cost Home charging is usually cheaper than public charging stations. Smart Energy Management Advanced chargers support scheduling and monitoring. Installation Process Site Inspection Technicians inspect: Electrical panel Parking area Earthing condition Cable route Available load Load Calculation Electrical load is calculated to ensure safe operation. Cable Installation High-quality copper cable is routed through: Conduits PVC pipe Cable tray Wall trunking Protection Installation MCB, RCCB, and SPD are installed inside the distribution board. Charger Mounting The charger is securely mounted on the wall. Testing and Commissioning Final testing includes: Voltage check Earthing test Charging test Load testing Safety verification Importance of Proper Cable Quality Using low-quality wire can cause: Heating Voltage drop Charging interruption Fire risk Reduced charger life Global Technology recommends branded copper cables for EV charging systems. Importance of RCCB and RCBO RCCB and RCBO protect users from electric shock and leakage current. RCCB Protects against leakage current. RCBO Provides both: Leakage protection Overload protection RCBO is considered a better all-in-one protection device. EV Charger Installation Safety Safety is the most important part of EV charger installation. Safety Measures: Proper earthing Branded protection devices Correct cable sizing Waterproof installation Tight electrical connections Surge protection Load balancing Professional installation reduces electrical risks. Maintenance Tips Regular maintenance improves charger life. Maintenance includes: Tightening terminals Cleaning charger Earthing inspection Protection device testing Cable inspection Software updates Why Choose Global Technology? Global Technology provides professional EV charger installation services with experienced technicians and quality workmanship. Our Services: Kia EV charger installation 7 kW charger installation 11 kW charger installation 22 kW charger installation Three-phase wiring Earthing installation RCCB and RCBO installation SPD installation Load testing Smart charger setup Contact Global Technology For professional 11 kW Kia EV charger installation services, contact Global Technology today. 📞 Call: 7780517507 🌐 Website: www.globaltechnology2814.com Global Technology provides reliable EV charger installation solutions for homes, apartments, offices, and commercial buildings.
Key Specification – 11 kW MG EV Charger Installation : Global Technology provides professional 11 kW MG EV charger installation services for homes, apartments, villas, offices, parking areas, and commercial buildings. Proper EV charger installation is important for safe charging, fast charging performance, electrical protection, and long-term reliability. An 11 kW MG EV charger is commonly used for electric cars that support three-phase AC charging and is suitable for residential and semi-commercial applications. For professional EV charger installation call 7780517507 Website: www.globaltechnology2814.com What is an 11 kW MG EV Charger? An 11 kW MG EV charger is an AC charging system designed for electric vehicles. It provides faster charging compared to standard 3.3 kW or 7.4 kW chargers. The charger usually works on a three-phase power supply and is suitable for MG electric vehicles and other compatible EVs. This charger is commonly installed in: Homes Apartments Villas Office parking Commercial parking areas Car showrooms EV charging stations The 11 kW charger provides balanced charging speed, energy efficiency, and safe operation. Main Specifications of 11 kW MG EV Charger 1. Charging Capacity Power Output: 11 kW Charging Type: AC Charging Charging Speed: Faster than standard home chargers Suitable for overnight and daily charging An 11 kW charger can charge most EVs much faster than a regular socket connection. 2. Power Supply Requirement The charger usually requires: 3-Phase Power Supply 415V AC input Proper neutral connection Earthing system Stable power supply is necessary for safe EV charging. 3. Current Requirement Typical current requirement: Around 16A per phase Depends on charger model and vehicle compatibility Proper MCB and RCCB protection should always be installed. 4. Connector Type Most MG EV chargers use: Type 2 Connector IEC standard charging connector Compatible with modern electric vehicles Type 2 charging connectors are widely used in India and Europe. 5. Cable Specification Recommended cable size depends on distance: For short distance: 4 sqmm copper cable For medium distance: 6 sqmm copper cable For longer distance: 10 sqmm copper cable Cable selection depends on: Distance Voltage drop Load capacity Installation method Copper cables are highly recommended for EV charging systems. Importance of Proper Earthing Earthing is one of the most important parts of EV charger installation. Proper earthing helps: Prevent electric shock Protect charger electronics Improve safety Reduce leakage current problems Protect vehicle battery system Recommended earthing types: Copper earthing Chemical earthing GI earthing Global Technology provides complete EV charger earthing solutions. MCB and RCCB Protection Every EV charger installation should include protection devices. Recommended Protection: MCB Protects against: Overload Short circuit RCCB Protects against: Electric leakage Shock hazards RCBO Combines: MCB protection RCCB protection For EV chargers, RCBO is often considered the best option because it provides combined safety. SPD Protection for EV Chargers SPD (Surge Protection Device) protects EV chargers from: Voltage spikes Lightning surges Electrical fluctuations Recommended: Type 2 SPD for EV charging systems SPD protection increases charger life and protects expensive electronics. Installation Process Global Technology follows professional installation methods. Installation Steps 1. Site Inspection Technicians inspect: Power availability Meter capacity Cable route Parking location 2. Load Calculation We calculate: Electrical load Voltage drop Breaker capacity 3. Cable Routing Cable routing may include: Conduit installation Wall mounting Underground routing 4. Protection Installation Installation of: MCB RCCB/RCBO SPD 5. Charger Mounting Charger is mounted safely on: Wall Stand Pillar 6. Testing Complete testing includes: Voltage test Earthing test Leakage test Charging test Benefits of 11 kW EV Charger Faster Charging Charges vehicle much faster than: 15A socket charging Portable chargers Better Safety Professional installation improves: Electrical safety Charger protection Vehicle safety Smart Charging Features Many 11 kW chargers include: Wi-Fi monitoring Mobile app control RFID access Energy monitoring Long-Term Reliability Professional installation improves: Charger lifespan Stable performance Reduced maintenance Best Cable for EV Charger Installation For EV charging systems: Recommended Brands Polycab Finolex KEI Havells Recommended Cable Type FRLS copper cable XLPE cable Armoured cable for outdoor use Copper cable is preferred because: Lower voltage drop Better conductivity Reduced heating Voltage Drop Importance Voltage drop increases when: Cable distance increases Cable size is small High voltage drop can: Reduce charging speed Cause heating Damage charger performance Proper cable sizing is very important for long-distance installations. EV Charger Installation for Apartments Apartment installations may require: Society permission Dedicated meter Proper load approval Parking routing approval Global Technology provides apartment EV charging solutions with safe cable management. Outdoor EV Charger Installation Outdoor chargers require: Weatherproof enclosure Waterproof connectors UV-resistant cable Proper earthing IP-rated chargers are recommended for outdoor installations. Common Problems in EV Charger Installation Improper installation may cause: Charger tripping Cable heating Voltage fluctuation Earthing problems Slow charging RCCB tripping Professional installation helps avoid these problems. Maintenance Tips Regular Maintenance Includes: Tightening connections Cleaning charger Checking earthing Inspecting cable condition Testing protection devices Maintenance improves charger life and safety. Why Choose Global Technology? Global Technology provides professional EV charger installation services with quality workmanship and customer support. Our Services Include: EV charger installation Earthing work MCB and RCCB installation SPD installation Cable routing Load calculation Electrical panel upgrade Apartment EV setup Commercial EV charging setup Contact Global Technology For professional 11 kW MG EV charger installation services contact: 📞 Call: 7780517507 🌐 Website: www.globaltechnology2814.com Global Technology provides safe, reliable, and professional EV charging installation solutions for homes and commercial applications.
Key specification : Mahindra 11kW EV Charger Installation Services Looking for professional Mahindra 11kW EV charger installation? Global Technology provides complete EV charging solutions for homes, apartments, offices, commercial buildings, parking areas, villas, and industrial locations. Proper installation ensures safe charging, maximum efficiency, protection against electrical faults, and long charger life. Call: 7780517507 Website: www.globaltechnology2814.com What is a Mahindra 11kW EV Charger? A Mahindra 11kW EV charger is a Level-2 AC charging station designed to charge electric vehicles faster than standard domestic sockets. It operates on a three-phase electrical supply and is suitable for Mahindra electric vehicles and other EVs compatible with Type-2 charging standards. The charger converts AC power from the electrical supply and communicates with the vehicle through charging protocols to provide safe and efficient charging. Key Specifications of Mahindra 11kW EV Charger Charger Type AC Wall-Mounted EV Charger Smart Charging System Residential and Commercial Use Charging Capacity Rated Output Power: 11kW Suitable for faster home charging Supports long-duration daily charging Input Voltage 400V AC Three Phase Voltage Tolerance as per manufacturer standards Frequency 50Hz Output Current Up to 16A per phase Charging Connector Type 2 Connector IEC Standard Compatible Communication Protocol CP (Control Pilot) PP (Proximity Pilot) Smart charging communication Installation Type Wall Mounted Pole Mounted (optional) Protection Rating IP54 / IP55 (depending on model) Dust Resistant Water Resistant Operating Temperature Suitable for Indian weather conditions High-temperature protection included Safety Features Overload Protection Short Circuit Protection Earth Leakage Protection Surge Protection Over Voltage Protection Under Voltage Protection Temperature Monitoring Display Features LED Status Indicators Charging Status Display Fault Indication Display Connectivity RFID Support (selected models) Wi-Fi Support Mobile App Monitoring Remote Diagnostics Electrical Requirements for Mahindra 11kW Charger Installation Before installation, the site electrical infrastructure must be checked carefully. Three Phase Supply The charger requires: R Phase Y Phase B Phase Neutral Earth Required Voltage Phase to Neutral: Approximately 230V Phase to Phase: Approximately 415V Voltage Stability The incoming voltage should remain within acceptable limits to avoid charger faults and charging interruptions. Recommended Cable Size Correct cable selection is essential for safety and efficiency. Up to 20 Meters 5 Core x 4 sq mm Copper Cable 20–40 Meters 5 Core x 6 sq mm Copper Cable 40–60 Meters 5 Core x 10 sq mm Copper Cable Longer Distances Voltage drop calculations must be performed before selecting cable size. Recommended Protection Devices MCCB Recommended: 32A Four Pole MCCB 40A Four Pole MCCB Purpose: Short Circuit Protection Overload Protection Isolation Protection Popular Brands: ABB Legrand Schneider Siemens RCCB Recommended: 40A 4 Pole RCCB 63A 4 Pole RCCB Sensitivity: 30mA Purpose: Earth Leakage Protection Human Safety Protection Surge Protection Device (SPD) Recommended: Type 2 SPD Purpose: Lightning Protection Voltage Surge Protection Electronic Component Protection Earthing Requirements Proper earthing is mandatory. Earth Resistance Ideal: Below 1 Ohm Acceptable: Below 5 Ohms Earthing Types Copper Earthing Advantages: Long life Excellent conductivity Reliable performance GI Earthing Advantages: Cost-effective Suitable for residential installations Installation Location Requirements Wall Condition The wall must be: Strong Dry Crack-free Load bearing Mounting Height Recommended: 1200 mm to 1500 mm from floor level Accessibility Ensure: Easy vehicle access Easy cable handling Safe user operation Site Survey Checklist Professional installation starts with a complete site survey. Electrical Panel Inspection Check: Main incomer MCCB rating RCCB condition Busbar capacity Earthing Inspection Verify: Earthing pit condition Earth continuity Earth resistance value Voltage Inspection Check: R-Y Voltage Y-B Voltage R-B Voltage Phase-Neutral Voltage Load Assessment Determine: Existing load Spare electrical capacity Future expansion possibilities Mahindra EV Charger Wiring Diagram Components Incoming Supply R Phase Y Phase B Phase Neutral Earth Protection Panel MCCB ↓ SPD ↓ RCCB ↓ EV Charger Charger Connections L1 L2 L3 N PE CP PP Control Pilot (CP) Function CP wire is responsible for communication between: EV Charger Electric Vehicle Functions: Vehicle Detection Charging Permission Current Limitation Safety Monitoring Proximity Pilot (PP) Function PP wire identifies: Cable Rating Connector Status Plug Connection Status A faulty PP wire may prevent charging initiation. Step-by-Step Mahindra 11kW EV Charger Installation Step 1 – Site Inspection Inspect: Electrical room Parking location Existing electrical panel Earthing system Step 2 – Material Preparation Required materials: EV Charger Copper Cable MCCB RCCB SPD PVC Conduit Cable Glands Earthing Materials Step 3 – Cable Routing Install: PVC Conduit HDPE Pipe Cable Trunking Maintain proper cable protection. Step 4 – Mount Charger Mark drilling points. Install: Anchor Fasteners Mounting Plate Charger Unit Ensure level alignment. Step 5 – Electrical Connection Connect: R Phase Y Phase B Phase Neutral Earth Tighten all terminals properly. Step 6 – Earthing Connection Connect charger earth terminal. Verify: Earth continuity Earth resistance Step 7 – Protection Device Installation Install: MCCB RCCB SPD Perform torque tightening. Step 8 – Functional Testing Check: Voltage Current Earthing Charging indication Fault indication Testing Procedures Voltage Testing Measure: R-Y = Approximately 415V Y-B = Approximately 415V R-B = Approximately 415V Phase-Neutral = Approximately 230V Earth Testing Verify: Earth Continuity Earth Resistance Insulation Testing Check cable insulation using a megger before energizing. Charger Startup Test Observe: LED indication Communication status Charger readiness Common Installation Mistakes Undersized Cable Results: Heating Voltage drop Charging interruption Poor Earthing Results: Safety risks RCCB tripping Charger faults Loose Connections Results: Terminal burning Charger shutdown Fire hazards No Surge Protection Results: PCB damage Communication failures Common Faults and Solutions Red Fault Light Possible causes: Earth fault Voltage issue Communication issue Solution: Check supply voltage Check earthing Restart charger RCCB Tripping Possible causes: Earth leakage Wiring fault Solution: Inspect wiring Verify insulation resistance Vehicle Not Charging Possible causes: CP fault PP fault Connector issue Solution: Inspect charging connector Check communication wiring Maintenance Guidelines Monthly Inspection Check: Connector condition Cable condition LED status Quarterly Inspection Verify: Terminal tightness Earth continuity RCCB operation Annual Inspection Perform: Earth resistance testing Insulation resistance testing Full charger diagnostics Benefits of Professional Installation Enhanced Safety Proper protection devices reduce electrical hazards. Reliable Charging Stable electrical connections ensure uninterrupted charging. Longer Equipment Life Correct installation prevents overheating and component damage. Warranty Compliance Professional installation helps maintain manufacturer warranty conditions. Applications Mahindra 11kW EV chargers are suitable for: Homes Villas Apartments Residential Communities Commercial Buildings Corporate Offices Shopping Malls Hotels Hospitals Educational Institutions Fleet Parking Areas Why Choose Global Technology? ✅ Professional EV Charger Installation ✅ Mahindra EV Charger Experts ✅ Site Survey & Load Assessment ✅ MCCB, RCCB & SPD Installation ✅ Earthing Solutions ✅ Cable Routing & Conduit Work ✅ Testing & Commissioning ✅ Residential & Commercial Projects ✅ Fast Service Across Hyderabad ✅ Technical Support Available Call: 7780517507 Website: www.globaltechnology2814.com Keywords Mahindra 11kW EV Charger Installation, EV Charger Installation Hyderabad, Type 2 EV Charger Installation, Three Phase Charger Installation, Home EV Charger Setup, Commercial EV Charging Station Installation, EV Charger Earthing Service, RCCB Installation, MCCB Installation, EV Charger Wiring, Mahindra Electric Vehicle Charger Installation, Global Technology EV Services.
Key specification : 11kW EV charger is a three-phase AC charging station commonly used for homes, apartments, offices, commercial buildings, parking facilities, and fleet charging applications. Before installation, it is important to verify electrical capacity, cable sizing, protection devices, earthing, and safety compliance. 1. Charger Rating Charger Capacity: 11kW Supply Voltage: 400V AC ±10% Frequency: 50Hz Phase Requirement: 3 Phase + Neutral + Earth Maximum Current: 16A per phase Charging Standard: IEC 61851 Connector Type: Type 2 Socket or Type 2 Cable Charging Mode: Mode 3 2. Electrical Supply Requirements The installation location must have: Three-phase electrical connection Stable voltage supply Dedicated circuit for EV charger Proper earthing system Adequate distribution board capacity Typical supply requirements: Voltage: 400V AC Current: 16A per phase Connected Load: 11kW Power Factor: >0.95 3. Recommended Cable Size Cable selection depends on distance and installation conditions. Up to 20 meters 5 Core x 4 sq.mm Copper Cable 20–40 meters 5 Core x 6 sq.mm Copper Cable 40–60 meters 5 Core x 10 sq.mm Copper Cable Above 60 meters Voltage drop calculation required Cable cores: R Phase Y Phase B Phase Neutral Earth 4. MCCB Selection Recommended protection: MCCB Rating: 25A–32A Poles: 4 Pole Breaking Capacity: 10kA or higher Popular brands: ABB Schneider Legrand Siemens Hager 5. RCCB Protection Residual current protection is mandatory. Recommended: RCCB 40A, 30mA, 4 Pole Type A RCCB Type B if manufacturer specifies Functions: Shock protection Leakage current detection Enhanced safety 6. SPD (Surge Protection Device) Protection against: Lightning surges Voltage spikes Electronic component damage Recommended: Type 2 SPD 3 Phase + Neutral 7. Earthing Requirements Proper earthing is critical for EV charging safety. Recommended earth resistance: Ideal: Below 1 Ohm Good: Below 2 Ohms Acceptable: Below 5 Ohms Use: Copper bonded earth electrode GI earth electrode Dedicated charger earth Earth conductor: Minimum 6 sq.mm copper As per local regulations 8. Distribution Board Requirements Dedicated EV charging circuit: MCCB RCCB SPD Proper labeling Neutral bar Earth bar DB should be: Dust protected Weather protected Easily accessible 9. Charger Mounting Height Recommended installation height: 1.2m to 1.5m from floor level Benefits: Easy access Safe operation Reduced cable strain 10. Installation Location Suitable locations: Home parking Villa garage Apartment parking Commercial parking Fleet parking area Avoid: Flood-prone areas Excessive heat Chemical exposure Direct impact zones 11. IP Protection Rating Outdoor chargers should have: Minimum IP54 Preferred IP65 Benefits: Dust protection Water resistance Outdoor durability 12. Communication Features Modern chargers may support: Wi-Fi Ethernet Bluetooth 4G SIM OCPP Protocol Functions: Remote monitoring Energy tracking Load management User authorization 13. RFID Authentication Optional security feature: RFID cards User access control Charging history Energy monitoring 14. Energy Meter Integration Recommended for: Billing Consumption monitoring Tenant charging Options: MID-certified meter Digital kWh meter Smart energy meter 15. Load Calculation 11kW charger current: Formula: Power = √3 × Voltage × Current 11,000 = 1.732 × 400 × Current Current ≈ 16A per phase Therefore: 16A three-phase supply required 16. Testing Before Commissioning Voltage Test Check: R-Y = 400–415V Y-B = 400–415V R-B = 400–415V Phase-Neutral Test 220–240V Earth Test Proper continuity Low resistance Insulation Test Cable insulation integrity RCCB Test Trip button operation Leakage protection verification 17. Commissioning Procedure Verify supply voltage Verify phase sequence Check neutral connection Check earth continuity Tighten terminals Energize charger Check status LEDs Configure settings Test charging operation Record installation data 18. Safety Requirements Always: Isolate power before work Use insulated tools Wear PPE Follow manufacturer guidelines Use certified materials Perform testing after installation 19. Common Installation Mistakes ❌ Undersized cable ❌ Poor earthing ❌ Loose neutral connection ❌ No RCCB protection ❌ No surge protection ❌ Improper gland sealing ❌ Incorrect phase sequence ❌ Excessive cable bending ❌ Inadequate mounting support 20. Maintenance Recommendations Monthly: Visual inspection LED status check Cable condition check Quarterly: Terminal tightening RCCB testing Charger cleaning Yearly: Earthing resistance test Insulation resistance test Full electrical inspection 21. Advantages of 11kW EV Charger ✅ Faster charging than single-phase chargers ✅ Suitable for homes and businesses ✅ Reduced charging time ✅ Smart charging options ✅ Energy monitoring ✅ Reliable performance ✅ Compatible with most EVs using Type 2 connector Professional EV Charger Installation Services Global Technology 📞 7780517507 🌐 www.globaltechnology2814.com 11kW EV Charger Installation, Testing, Earthing, MCCB, RCCB, SPD Protection, Cable Laying, Commissioning, and Maintenance Services Available.
Key specification : ABB 11kW EV Charger Installation Services by Global Technology ABB 11kW EV chargers are reliable, smart, and efficient charging solutions for homes, apartments, offices, commercial buildings, and parking facilities. Proper installation is essential to ensure safety, maximum charging performance, and long equipment life. Global Technology provides professional ABB 11kW EV charger installation, testing, commissioning, and maintenance services. Key Specifications of ABB 11kW EV Charger ✅ Charging Power: 11kW AC ✅ Input Supply: 400V AC, 3-Phase, 50Hz ✅ Output Current: Up to 16A per phase ✅ Connector Type: Type 2 Charging Socket/Cable ✅ Charging Standard: IEC 61851 Compliant ✅ Protection Rating: IP54/IP55 (Model Dependent) ✅ Operating Temperature: Suitable for indoor and outdoor installation ✅ Connectivity: RFID, Wi-Fi, Ethernet, Bluetooth (model dependent) ✅ Smart Charging: Mobile app monitoring and energy management support ✅ Safety Features: Overcurrent Protection Short Circuit Protection Earth Fault Protection Surge Protection Overvoltage Protection Residual Current Detection Installation Requirements ✔ Dedicated 3-Phase Power Supply ✔ Proper Earthing System (Earth Resistance below 5 Ohms recommended) ✔ Suitable MCCB/MCB Protection ✔ RCCB Type A or Type B as per charger specification ✔ Correct Cable Size (Generally 5 Core Copper Cable – size depends on distance) ✔ Weatherproof Mounting Location ✔ Adequate Ventilation Around Charger ✔ Stable Voltage Supply Standard Electrical Components 4 Pole MCCB 4 Pole RCCB SPD (Surge Protection Device) Copper Earthing Distribution Board Integration Cable Gland and Conduit Protection Energy Meter (Optional) Installation Process Site Inspection Load Assessment Cable Route Planning Earthing Verification MCCB & RCCB Installation Charger Mounting Electrical Connections Configuration & Commissioning Functional Testing Charging Performance Verification Benefits of ABB 11kW EV Charger ✔ Faster Charging than Single-Phase Chargers ✔ High Reliability and Safety Standards ✔ Smart Monitoring Features ✔ Suitable for Residential and Commercial Applications ✔ Durable Indoor and Outdoor Design ✔ Energy Efficient Operation Why Choose Global Technology? ✓ Professional EV Charger Installation Team ✓ ABB Charger Experience ✓ Proper Earthing and Safety Testing ✓ Complete Electrical Setup ✓ Fast Service Across Hyderabad ✓ Installation, Repair & Maintenance Support 📞 Call: 7780517507 🌐 Website: www.globaltechnology2814.com ABB 11kW EV Charger Installation | Testing | Commissioning | Earthing | RCCB | MCCB | Cable Laying | Complete EV Charging Solutions by Global Technology.
