Book Telephone Wiring Services starting at INR in Hyderabad

Telephone Wiring

30min INR 29 INR 35 https://www.globaltechnology2814.com/services/telephone-wiring/41

Description

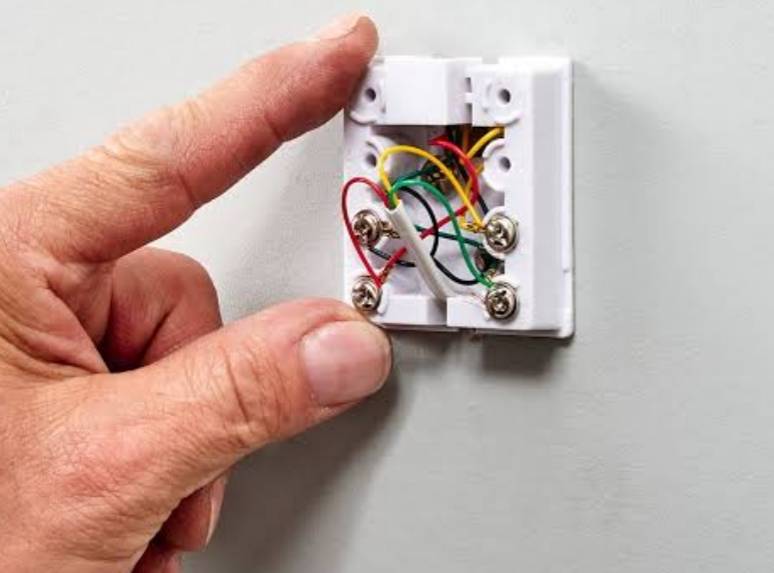

Telephone wiring is a system of cables and connections that enable the transmission of voice signals over a distance. It typically involves copper wires twisted together in pairs to reduce interference. ✔ Wires: The most common type of telephone wire has four strands (two twisted pairs) with red, green, yellow, and black insulation. ✔ Connections: Modular jacks (RJ-11) are used to connect telephones to the wiring. These jacks have pins that correspond to the wires in the cable. ✔ Color Coding: The red and green wires are typically used for the main phone line, with green being the 'tip' and red being the 'ring.' The yellow and black wires can be used for a second line. Key points: ✔ Twisting the wires helps prevent crosstalk and interference. ✔ Only two wires are needed for a single phone line. ✔ Telephone wiring is relatively simple and can be done by most DIYers with basic tools. Caution: If you are unsure about any aspect of telephone wiring, it is always best to consult a qualified technician. any problem contact us 7780517507,helpglobaltechnology2814@gmail.com, 24/7 service available visiting charge 100/-one month free service with warranty,

Other Specifications

Other specifications : **Telephone Wiring** involves the installation of the necessary cables and infrastructure to connect telephones to a phone line, whether it's a traditional landline system or for internet-related services like VoIP (Voice over Internet Protocol). Proper wiring ensures clear signal transmission and effective communication. ### ✅ **Telephone Wiring Specifications** Here are the important **specifications** and considerations when installing **telephone wiring**: --- ### 1. **Types of Telephone Wiring Cables** - **Twisted Pair Cables**: - The most common type used for telephone wiring. - Consists of pairs of wires that are twisted together to reduce electromagnetic interference (EMI) and crosstalk between wires. - **Cat-5e or Cat-6** cables are commonly used for both **data and voice transmission** in modern installations. - **Standard Telephone Cable**: - Often referred to as **4-wire** or **6-wire cables** that are used specifically for telephone connections. - Typically uses **solid copper conductors** for better signal quality. - **Coaxial Cable (For DSL/Internet)**: - If you're installing for **DSL services** (Digital Subscriber Line), **coaxial cables** may be required for connecting to the internet modem. --- ### 2. **Installation Process for Telephone Wiring** #### **Step 1: Planning the Wiring Layout** - **Determine the Location**: Decide where the **telephone outlets** or **jack points** need to be installed in each room. - **Central Wiring Hub**: The telephone system usually connects to a **main distribution frame (MDF)** or **telephone panel** where the **telephone lines** from the provider connect to your internal network. This is the starting point for the wiring. #### **Step 2: Choosing the Right Cable** - **Cable Length**: Measure the required lengths of cable from the **main telephone point** to all the **outlets** or jacks in different rooms. Always add a little extra length to ensure flexibility during installation. - **Cable Type**: Depending on whether you're using **analog phone lines** or **VoIP** systems, choose the appropriate type of cable (e.g., **Cat-5e**, **Cat-6**, or standard telephone wire). #### **Step 3: Running the Cable** - **Route the Cable**: Start from the main distribution point and run the cable to each of the designated phone jack locations. - For **aesthetic purposes** or **hidden installations**, run cables through walls or under floors. Alternatively, you can use **surface-mount conduit** to keep the wiring exposed. - **Avoid Interference**: Keep the telephone cables away from high-power cables like those used for **electricity**, as they may cause **signal interference**. - **Secure the Cable**: Use **clips**, **cable ties**, or **raceways** to secure the telephone wiring along walls, corners, or ceilings. This keeps the wiring neat and reduces potential damage. #### **Step 4: Connecting the Wires** - **Phone Jack Wiring**: At the outlet locations, install a telephone jack and carefully wire the cable. - **Color Codes**: Typically, the standard **color coding** for telephone wiring is: - **Red** (positive) - **Green** (negative) - **Yellow** (unused, but could be used in multi-line systems) - **Black** (unused, can be used for secondary lines) - **Main Connection**: Connect the other end of the cable to the **telephone distribution panel** or the **phone line terminal** provided by your phone service provider. - **Testing**: After installation, test the system to ensure all phone jacks are working properly by plugging in a phone to each outlet. --- ### 3. **Types of Telephone Wiring Installations** - **Single-Line Telephone System**: A basic telephone line used for one phone. This type of system typically requires one **telephone jack**. - **Multi-Line Telephone System**: If you need to have multiple lines (e.g., for a business), use multi-line systems where multiple phone numbers can be routed to different jacks. - **VoIP System Wiring**: For **VoIP (Voice over Internet Protocol)** services, telephone wiring often utilizes **Ethernet cables (Cat-5e, Cat-6)** to transmit digital voice signals. - **Additional Telephone Lines**: If you want multiple phone numbers, use **two-wire** or **four-wire** cable to install additional lines. --- ### 4. **Safety and Compliance Considerations** - **Avoid High Voltage Interference**: Telephone wiring should be kept away from electrical wiring, including **high-voltage cables** or cables with a higher current rating, to avoid signal degradation and interference. - **Grounding**: Proper grounding of telephone wires is necessary for safety and to prevent damage from electrical surges, such as lightning strikes. - **Code Compliance**: Ensure that the installation complies with **local electrical codes** and **telecommunication standards**. This includes proper grounding and wire insulation. - **Insulated Cables**: Use insulated cables to avoid accidental shorts and prevent electrocution when working with telephone lines. --- ### 5. **Troubleshooting Telephone Wiring Issues** - **No Dial Tone**: If there's no dial tone at a specific jack, check the following: - Ensure that the jack is properly wired and that all connections are secure. - Ensure there are no **damaged** or **loose wires** at the main distribution point or telephone terminal. - **Intermittent Service**: If service is dropping or the signal is weak, the issue could be with a **poor cable connection** or **interference** from nearby electrical lines. Check for **loose connections** or damaged wiring. - **Static or Noise**: If there's **static** or **noise** on the line, it could be due to: - Low-quality wiring. - **Signal interference** from nearby equipment or cables. - A **faulty telephone jack**. --- ### 6. **Telephone Wiring for Future Expansion** - **Leave Extra Capacity**: When installing telephone wiring, it’s a good practice to leave **extra cable** or **unused ports** in case you need to add additional lines or devices in the future. - **Modular Wiring for Upgrades**: If you're installing a VoIP system or a more modern setup, consider using **modular jack systems** for easier upgrades to your phone network. --- ### 7. **Cost Considerations** - The cost of installing **telephone wiring** will depend on: - The **type** of wiring used (standard phone wire vs. Ethernet for VoIP). - The **complexity** of the installation (single-line or multi-line system). - Labor costs, particularly if the installation requires **drilling holes**, **trenching** for underground lines, or **hidden wiring** in walls. --- ### ✅ **Questions to Ask Your Service Provider** 1. **What type of telephone wiring is most suitable for my setup**—analog or VoIP? 2. **Can you provide a cost estimate** for the complete telephone wiring installation, including materials and labor? 3. **How will the wiring be protected** to ensure longevity and minimize interference? 4. **Do you provide a warranty** for the telephone wiring installation and its maintenance? 5. **What measures will be taken to ensure the wiring complies with local codes** and regulations? --- Would you like assistance finding a service provider for **telephone wiring**, or do you need further details on any of the specifications?

Keywords

open wiring•24/7 service•Telephone Wiring•one month free service
